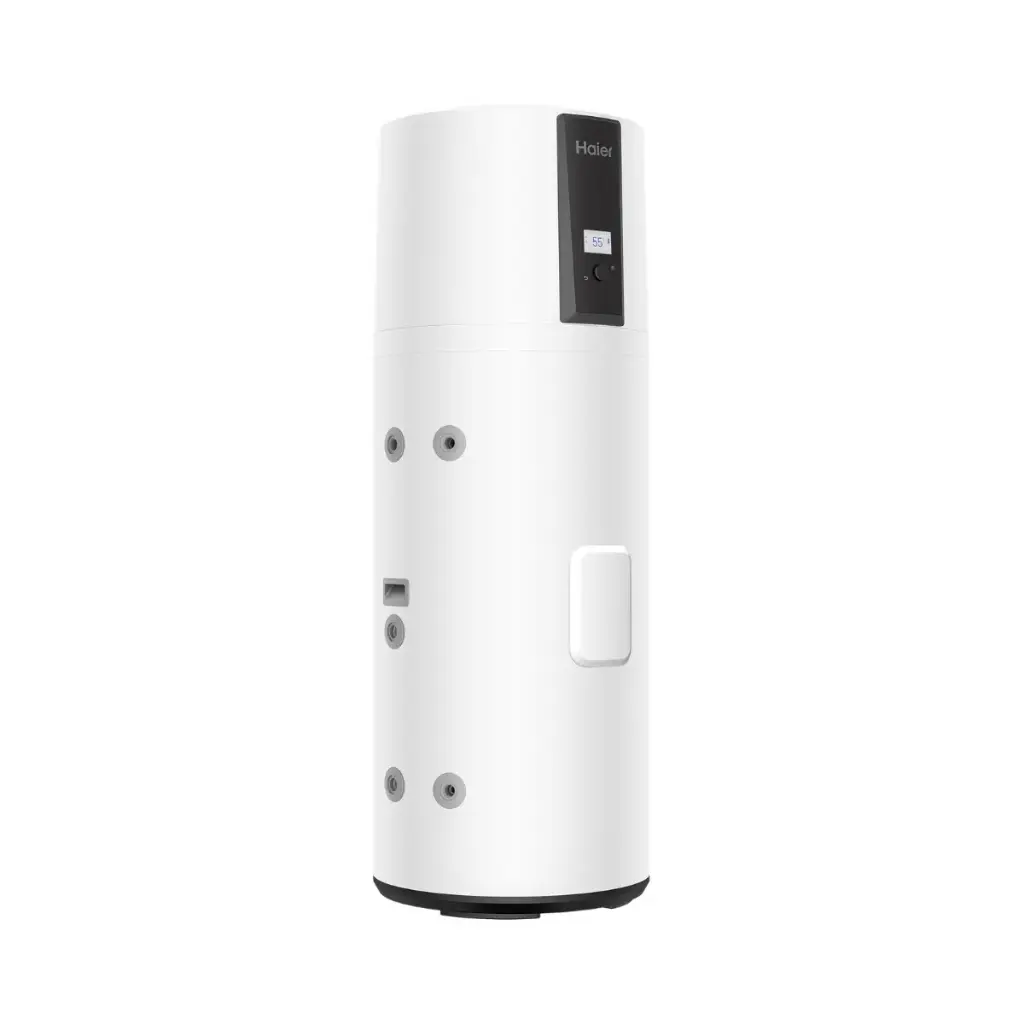

Haier Heatpump boiler R290 HPM7 250L

​Als u een Haier warmtepomp boiler aanschaft en laat installeren heeft u recht op €725 subsidie teruggave!​
U kunt ons vrijblijvend bellen of mailen voor meer informatie.

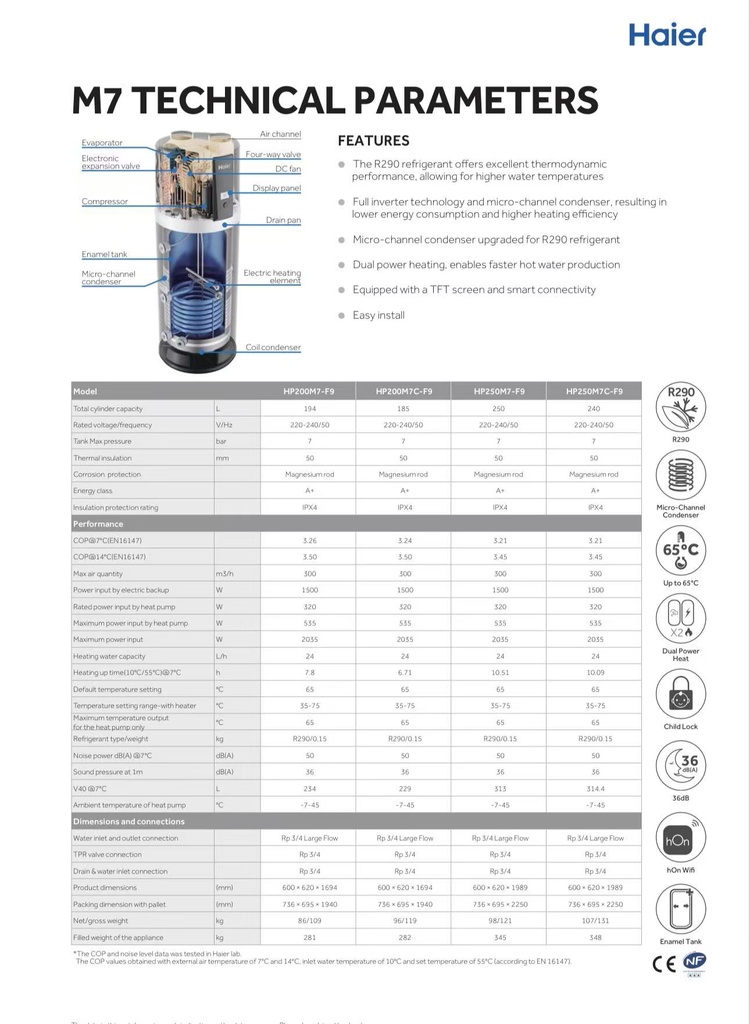

Technical Parameters – Tank

Tank volume: 250 L

Rated voltage / frequency: 220-240V / 50Hz

Tank max pressure: 7 bar

Thermal insulation: 50 mm

Corrosion protection: Magnesium rod

Waterproof grade: IPX4

Technical Parameters – Performance

COP @7°C (EN16147): 3.21

COP @14°C (EN16147): 3.45

Max air quantity: 300 m³/h

Power input by electric backup: 1500 W

Rated power input by heat pump: 320 W

Maximum power input by heat pump: 535 W

Maximum power input: 2035 W

Heating water capacity: 24 L/h

Heating up time (10°C → 55°C) @7°C: 10.51 h

Default temperature setting: 65°C

Temperature setting range with heater: 35°C – 75°C

Maximum temperature output (heat pump only): 65°C

Refrigerant

Refrigerant type / weight:

R290 / 0.15 kg

Maximum working temperature: 65°C

Ambient temperature range:

-7°C to 45°C

Noise

Noise power level @7°C: 50 dB(A)

Sound pressure at 1 meter: 36 dB(A)

Connections

Water inlet & outlet: Rp 3/4 Large Flow

TPR valve connection: Rp 3/4

Drain & water inlet connection: Rp 3/4

Air duct diameter: 180 mm

Maximum air duct length: 5 m

Dimensions

Product dimensions:

600 × 620 × 1989 mm

Packaging dimensions:

736 × 695 × 2250 mm

Net / Gross weight:

98 / 121 kg

Filled weight of appliance:

345 kg

* De COP en het geluidsniveau zijn getest in het Haier laboratorium
