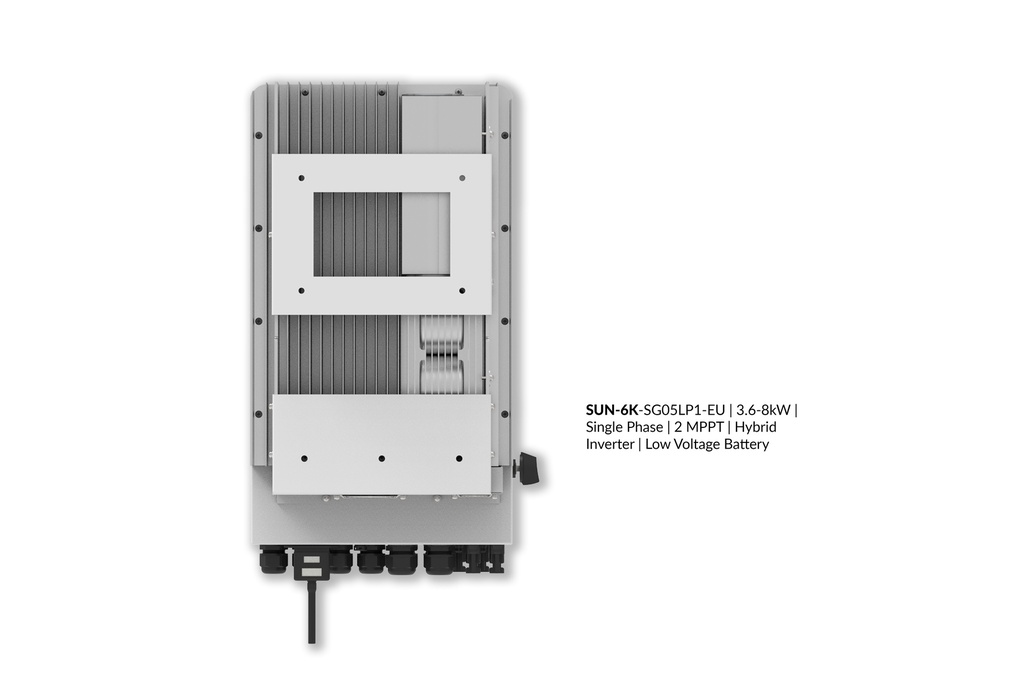

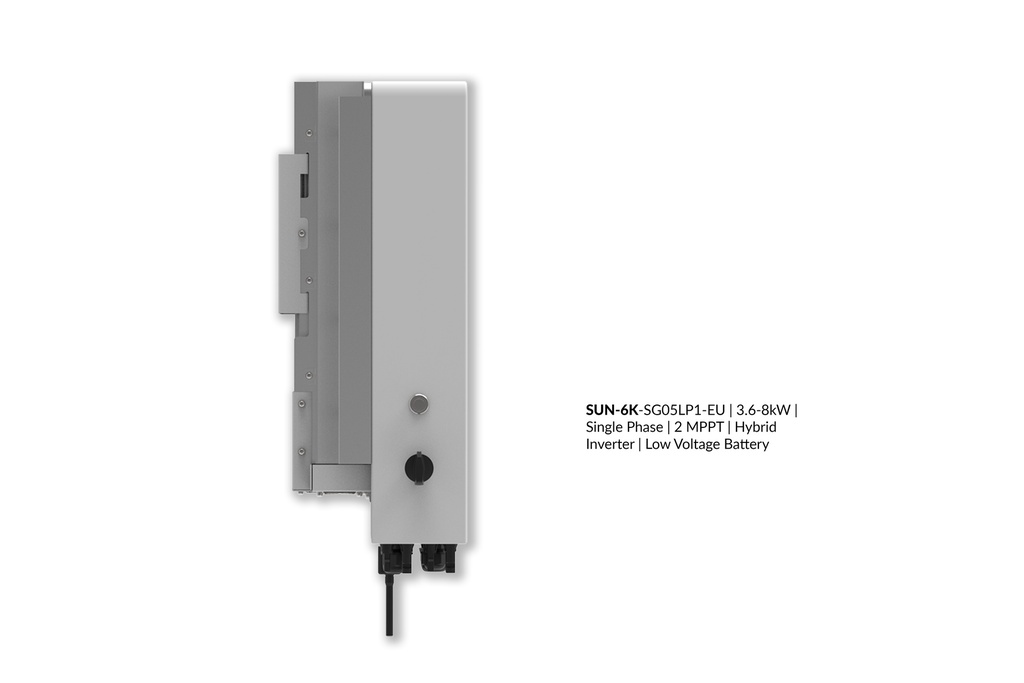

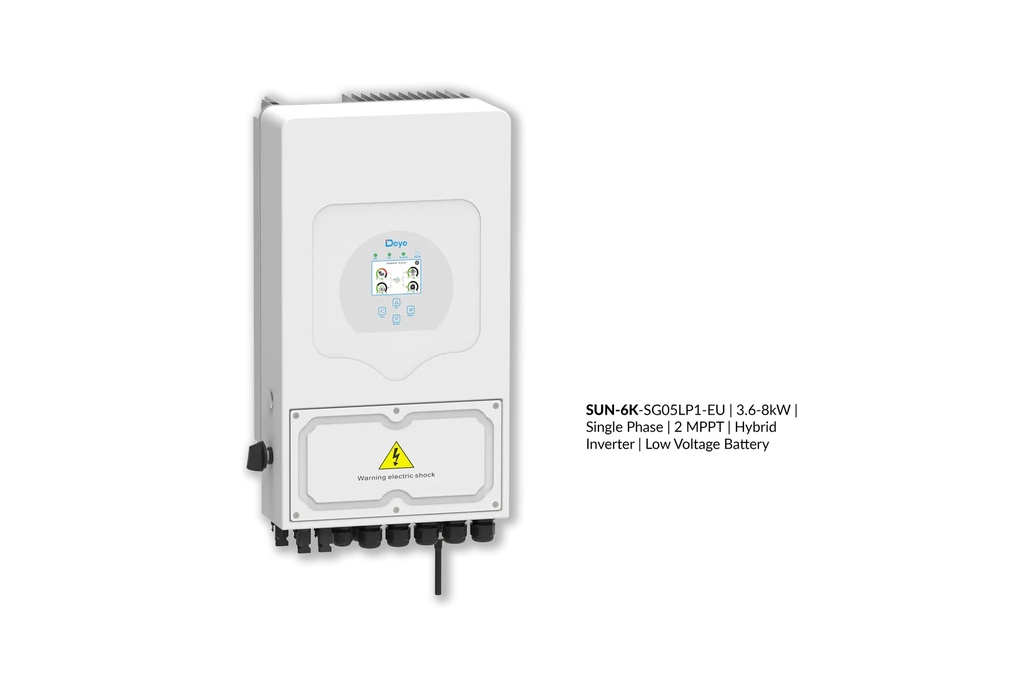

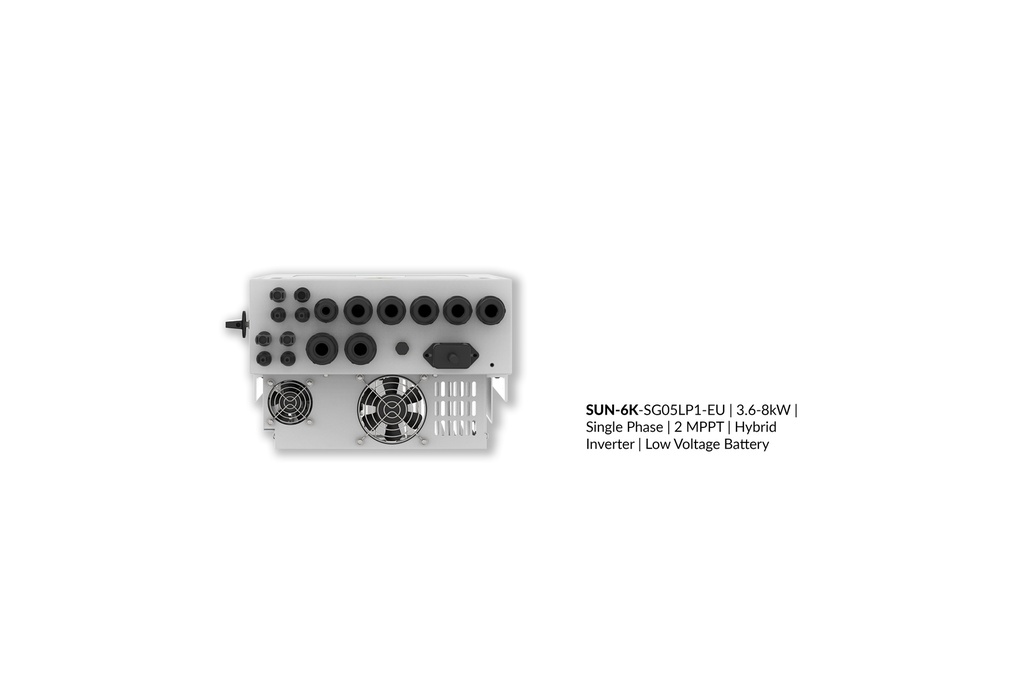

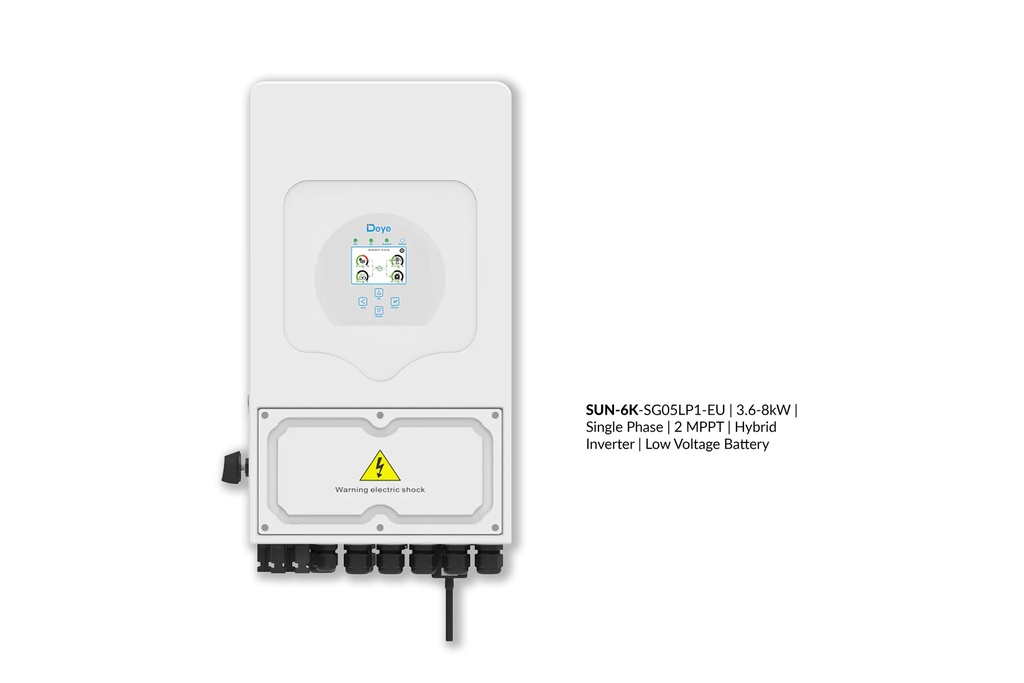

DEYE 1-Fase Hybride Omvormer 6kw
Batterij Input Data
Batterij type: Lead acid or Lithium-ion
Batterij voltage range (V): 40-60
Max. laden current (A): 135
Max. ontladen current (A): 135
Buiten temp. Sensor: Ja
Laad curve: 3 stages/ Equalization
Laad strategie voor Lion-ion batterij: Zelf aanpassing naar BMS
PV String Input data
Max. DC Input Power (W): 7800
Rated PV Input Voltage (V): 370(125-500)
Start-up Voltage (V): 125
MPPT Voltage Range (V): 150-425
Full load DC voltage range(V): 300-425
PV Input Current (A): 13+13
Max. PV ISC (A): 17+17
No.of MPPT Trackers: 2
No.of Strings Per MPPT Tracker: 1+1
AC Output Data
Rated AC Output and UPS Power (W): 6000
Max AC Output Active Power (W): 6000
AC Output Rated Current (A): 27.3/26.1
Max. AC Output Current (A): 30/28.7
Max. Continuous AC Passthrough (A): 40
Peak Power (off grid): 2 time of rated power, 10 S
Power Factor Adjustment Range: 0.8 leading to 0.8 lagging
Power Factor: 1
Output Frequency and Voltage: 50/60Hz, L/N/PE 220/230Vac
Grid Type: Single phase
Total Harmonics Current Distortion (THDi): <3% (of nominal power)
DC Current Injection: <0.5% In
Efficiëntie
Max. Efficiëntie: 97.60%
Euro Efficiëntie: 96.50%
MPPT Efficiëntie: 99.90%
General Data
Operating temperature Range (℃): -40 to -60℃,>45℃ Derating
Koelen: natural cooling
Geluid(dB): <30 db
Communicatie met BMS: RS485; CAN
Gewicht(kg): 24
Behuizing afmeting (WxHxD mm): 330x580x232 (Exclusief connectoren en beugels)
Protectie gradatie:IP65
Installatie: Wall mounted
Garantie: 5 Jaar (10 jaar optioneel)
