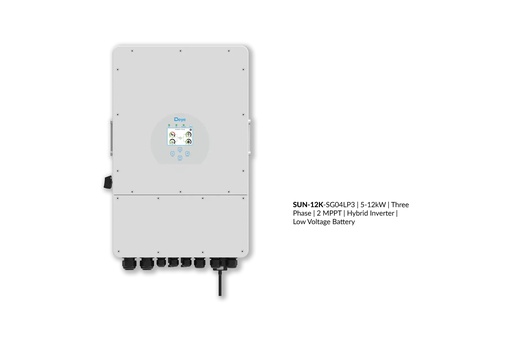

DEYE 3-Fase Hybride Omvormer 12kw
Batterij Input Data
Batterij type: Lead acid or Lithium-ion
Batterij voltage range (V): 40-60
Max. laden current (A): 240
Max. ontladen current (A): 240
Buiten temp. Sensor: Ja
Laad curve: 3 stages/ Equalization
Laad strategie voor Li-ion batterij: Zelf aanpassing naar BMS
PV String Input data
Max. DC Input Power (W): 15600
Rated PV Input Voltage (V): 550(160-800)
Start-up Voltage (V): 160
MPPT Voltage Range (V): 220-650
Full load DC voltage range(V): 350-650
PV Input Current (A): 26+13
Max. PV ISC (A): 34+17
No.of MPPT Trackers: 2
No.of Strings Per MPPT Tracker: 2+1
AC Output Data
Rated AC Output and UPS Power (W): 12000
Max AC Output Active Power (W): 13200
AC Output Rated Current (A): 18.2/17.4
Max. AC Output Current (A): 20/19.1
Max. Three-Phase Unbalanced output: 27.3/26.1
Max. Output short cicuit current (A): 75
Max. Continuous AC Passtrough (A): 45
Peak Power (off grid): 2 time of rated power, 10 S
Power Factor: 0.8 leading to 0.8 lagging
Output Frequency and Voltage: 50/60Hz, L/N/PE 220/380Vac, 230/400Vac
Grid Type: Three phase
Total Harmonics Current Distortion (THDi): <3% (of nominal power)
DC Current Injection: <0.5% In
Efficiëntie
Max. Efficiëntie: 97.60%
Euro Efficiëntie: 97.00%
MPPT Efficiëntie: 99.90%
General Data
Operating temperature Range (℃): -40 to -60℃,>45℃ Derating
Koelen: smart cooling
Geluid(dB): <45 db
Communicatie met BMS: RS485; CAN
Gewicht(kg): 33,6
Behuizing afmeting (BxHxD mm): 422x702x281 (Exclusief connectoren en beugels)
Protectie gradatie:IP65
Installatie: Wall mounted
Garantie: 5 jaar (10 jaar optioneel)
