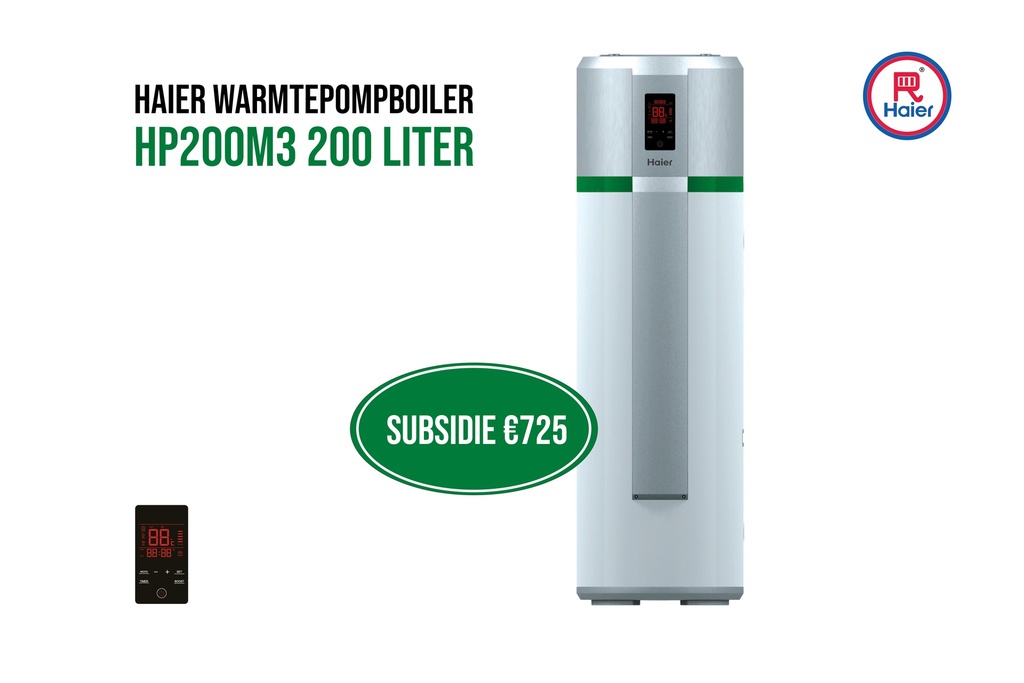

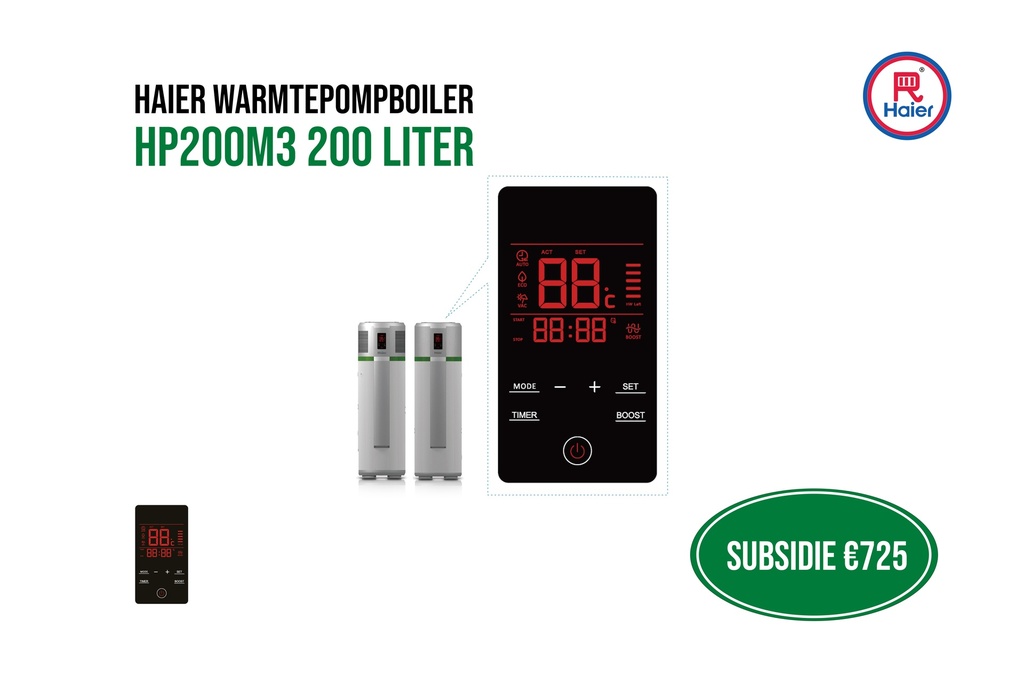

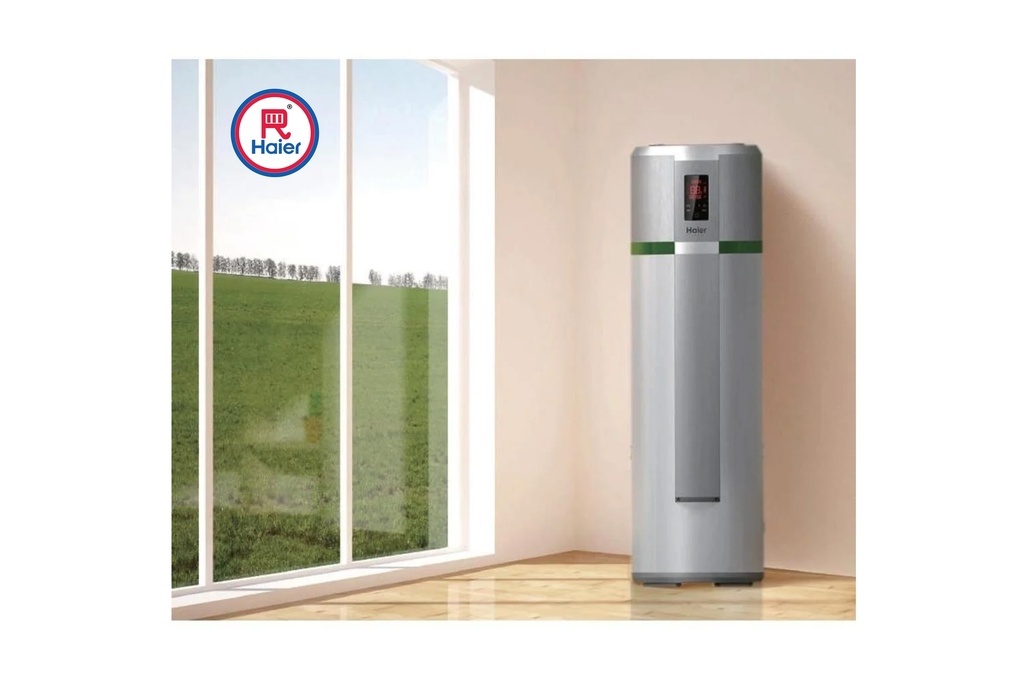

Haier Heatpump boiler HP200M3
When u buy and install a Haier heatpump boiler u get back €725,- subsidy!
Feel free to call or mail us for more information.
Technical Parameters Tank
Tank volume: 195 Liter
Rated voltage / frequency: 220V-240V/ 50HZ
Tank rated pressure: 0.7MPa
Corrosion protection: Magnesium rod
Water proof grade: IPX4
Technical Parameters Performances
Power input by electric backup: 1500W
Rated power input by heat pump: 495W
Maximum power input by heat pump: 865W
Maximum power input: 2365W
Standby power input: 27W
Max. volume of usable hot water at 40℃ settings at 55℃: 223 Liter
Heating up time 7℃: 5.50h
Heating up time 14℃: 4.68H
Default temperature setting: 55℃
Temperature setting range- with heater: 35℃ to 75℃
Maximum length of air duct: 5 meters
Diameter of air duct connection: 180mm
Maximum working pressure of refrigerant: 0.8/ 2.8MPa
Refrigerant type/ weight: R134a/ 0.9kg
Sound power level: 60dB
Ambient temperature for use of product: -7℃-35℃
Operating temperature of heat pump: -7℃-35℃
Technical Parameters Dimension and connections
Water inlet and outlet connection: G3/4"F
Safety valve connection: G3/4"F
Drain & water inlet connection: G3/4"F
Product dimensions: 600*629*1692mm
Packing dimension without pallet: 736*695*1810mm
Packing dimension with pallet: 736*695*1940mm
Net/ Gross weight: 91/ 103kg
* THE COP and noise level data was tested in Haier lab
