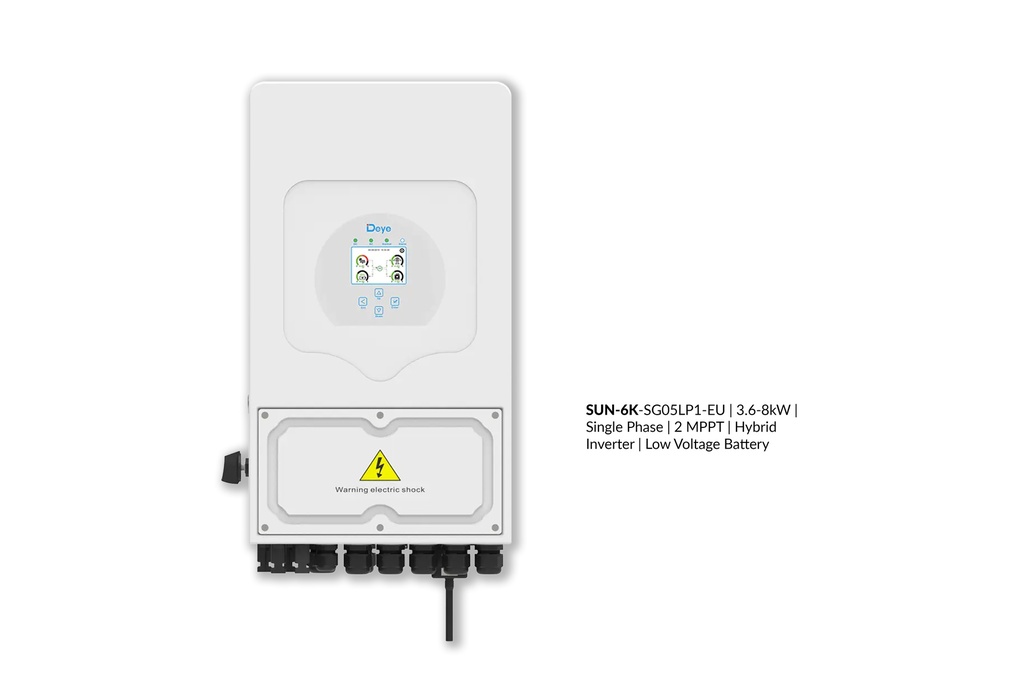

DEYE 6kw 1-phase Hybrid inverter

https://www.richaccu.nl/web/image/product.template/46297/image_1920?unique=1fe3313

Model: SUN-6K-SG05LP1-EU

1,800.00 € 1800.0 EUR 1,800.00 €

1,800.00 €

Not Available For Sale

    This combination does not exist.

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    DEYE 1-Phase Hybrid Inverter 6kw

    Battery Input Data

    Battery type: Lead acid or Lithium-ion
    Battery voltage range (V): 40-60
    Max. charging current (A): 135
    Max. discharge current (A): 135
    External temp. Sensor: Yes
    Charging curve: 3 stages/ Equalization
    Charging strategy for Li-ion battery: Self adaption to BMS

    PV String Input data

    Max. DC Input Power (W): 7800
    Rated PV Input Voltage (V): 370(125-500)
    Start-up Voltage (V): 125
    MPPT Voltage Range (V): 150-425
    Full load DC voltage range(V): 300-425
    PV Input Current (A): 13+13
    Max. PV ISC (A): 17+17
    No.of MPPT Trackers: 2
    No.of Strings Per MPPT Tracker: 1+1

    AC Output Data

    Rated AC Output and UPS Power (W): 6000
    Max AC Output Active Power (W): 6000
    AC Output Rated Current (A): 27.3/26.1
    Max. AC Output Current (A): 30/28.7
    Max. Continuous AC Passthrough (A): 40
    Peak Power (off grid): 2 time of rated power, 10 S
    Power Factor Adjustment Range: 0.8 leading to 0.8 lagging
    Power Factor: 1
    Output Frequency and Voltage: 50/60Hz, L/N/PE 220/230Vac
    Grid Type: Single phase
    Total Harmonics Current Distortion (THDi): <3% (of nominal power)
    DC Current Injection: <0.5% In

    Efficiency

    Max. Efficiency: 97.60%
    Euro Efficiency: 96.50%
    MPPT Efficiency: 99.90%

    General Data

    Operating temperature Range (℃): -40 to -60℃,>45℃ Derating
    Cooling: natural cooling
    Noise (dB): <30 db
    Communication with BMS: RS485; CAN
    Weight (kg): 24
    Cabinet size (WxHxD mm): 330x580x232 (Excluding connectors and Brackets)
    Protection Degree:IP65
    Installation Style: Wall mounted
    Warranty: 5 Years (10 Years optional)
