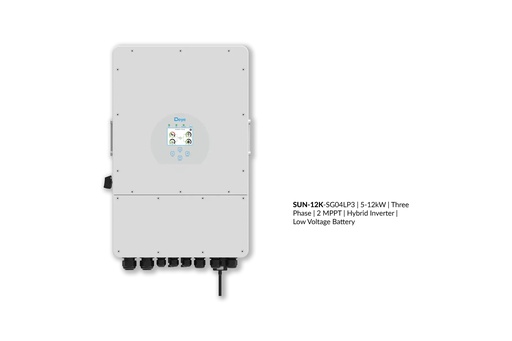

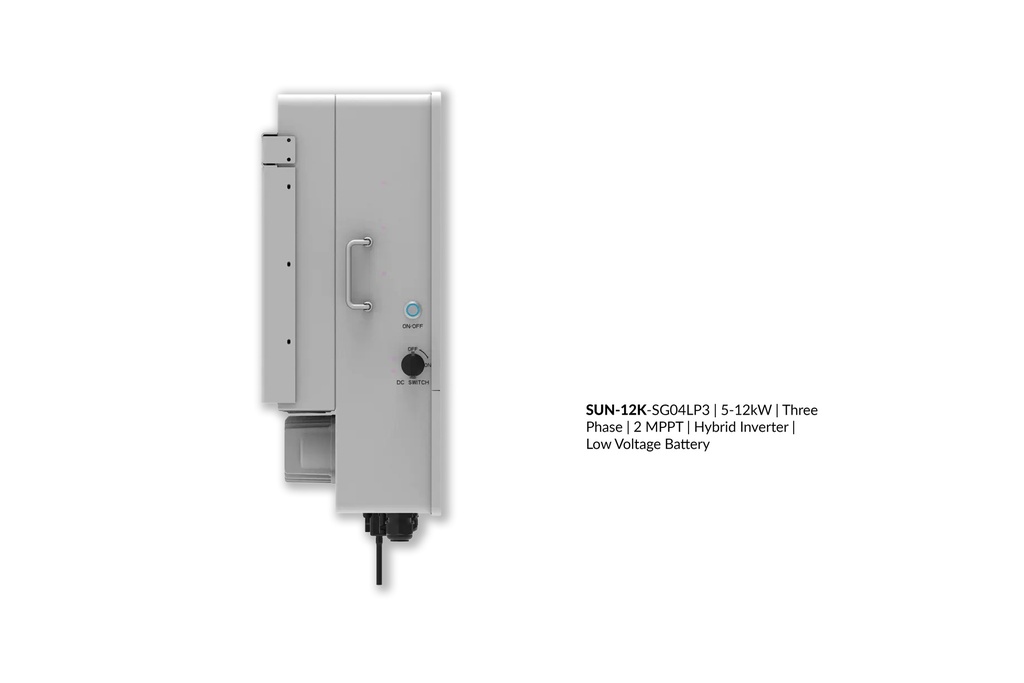

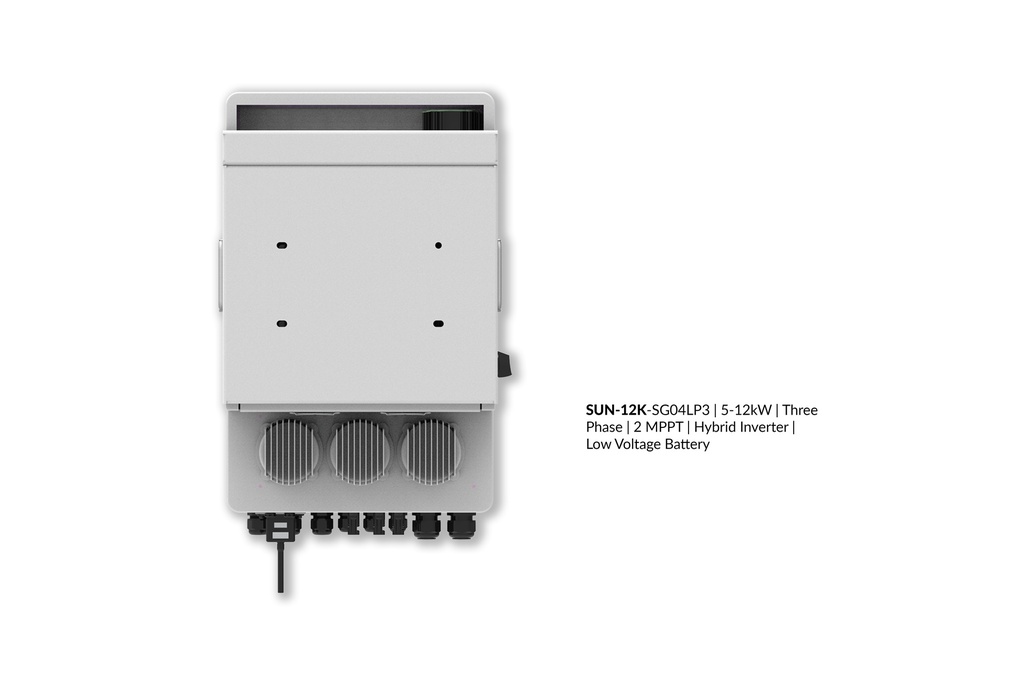

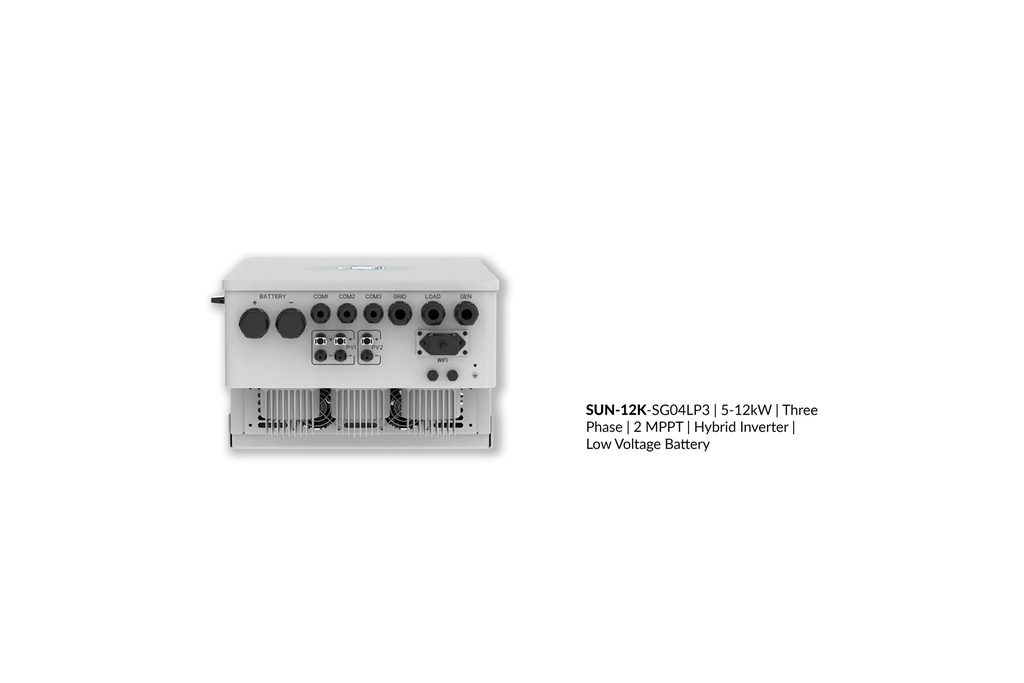

DEYE 3-Phase Hybrid Inverter 12kw
Battery Input Data
Battery type: Lead acid or Lithium-ion
Battery voltage range (V): 40-60
Max. charging current (A): 240
Max. discharge current (A): 240
External temp. Sensor: Yes
Charging curve: 3 stages/ Equalization
Charging strategy for Li-ion battery: Self adaption to BMS
PV String Input data
Max. DC Input Power (W): 15600
Rated PV Input Voltage (V): 550(160-800)
Start-up Voltage (V): 160
MPPT Voltage Range (V): 220-650
Full load DC voltage range(V): 350-650
PV Input Current (A): 26+13
Max. PV ISC (A): 34+17
No.of MPPT Trackers: 2
No.of Strings Per MPPT Tracker: 2+1
AC Output Data
Rated AC Output and UPS Power (W): 12000
Max AC Output Active Power (W): 13200
AC Output Rated Current (A): 18.2/17.4
Max. AC Output Current (A): 20/19.1
Max. Three-Phase Unbalanced output: 27.3/26.1
Max. Output short cicuit current (A): 75
Max. Continuous AC Passtrough (A): 45
Peak Power (off grid): 2 time of rated power, 10 S
Power Factor: 0.8 leading to 0.8 lagging
Output Frequency and Voltage: 50/60Hz, L/N/PE 220/380Vac, 230/400Vac
Grid Type: Three phase
Total Harmonics Current Distortion (THDi): <3% (of nominal power)
DC Current Injection: <0.5% In
Efficiency
Max. Efficiency: 97.60%
Euro Efficiency: 97.00%
MPPT Efficiency: 99.90%
General Data
Operating temperature Range (℃): -40 to -60℃,>45℃ Derating
Cooling: smart cooling
Noise (dB): <45 db
Communication with BMS: RS485; CAN
Weight (kg): 33,6
Cabinet size (WxHxD mm): 422x702x281 (Excluding connectors and Brackets)
Protection Degree:IP65
Installation Style: Wall mounted
Warranty: 5 Years (10 Years optional)
