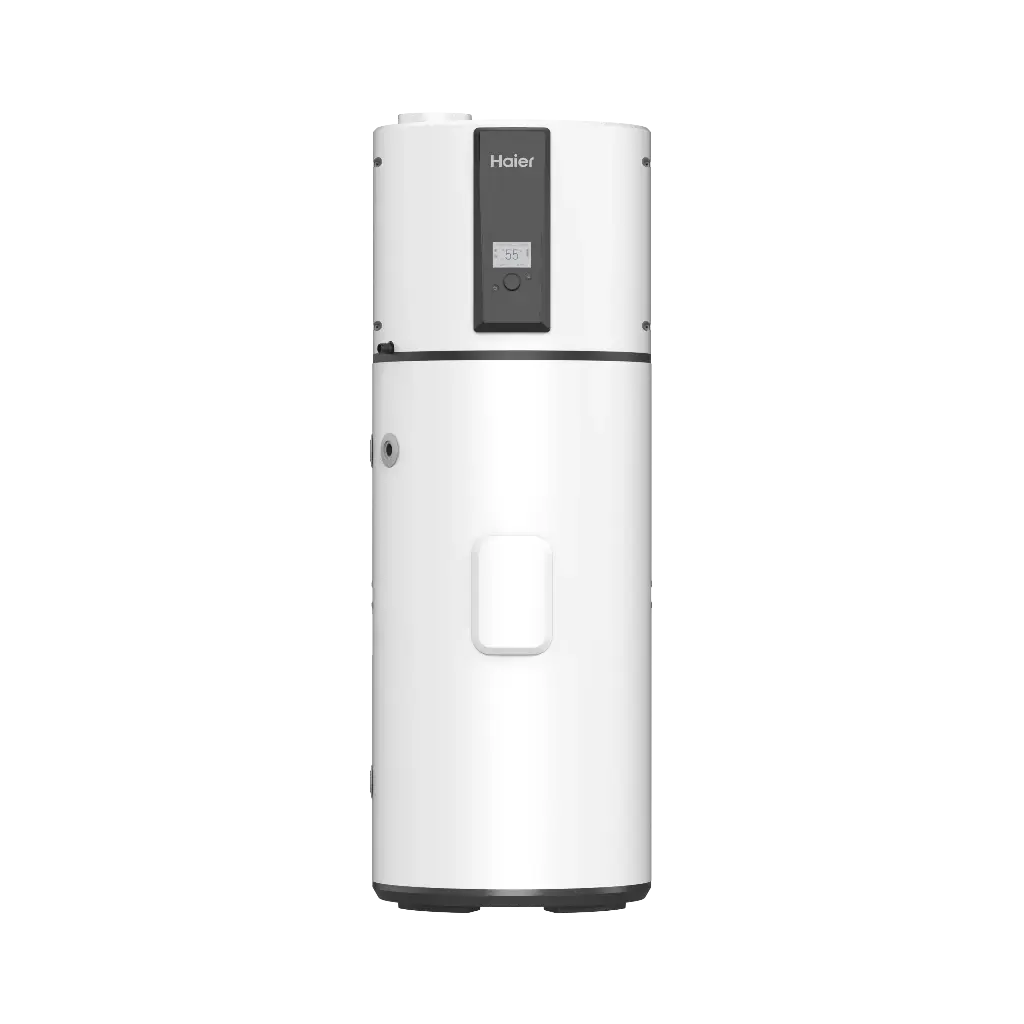

Haier Heatpump boiler R290 HPM7 200L
When u buy and install a Haier heatpump boiler u get back €725,- subsidy!
Feel free to call or mail us for more information.
Technical Parameters – Tank
Tank volume: 194 L
Rated voltage / frequency: 220-240V / 50Hz
Tank max pressure: 7 bar
Thermal insulation: 50 mm
Corrosion protection: Magnesium rod
Waterproof grade: IPX4
Energy class: A+
Technical Parameters – Performance
COP @7°C (EN16147): 3.26
COP @14°C (EN16147): 3.50
Max air quantity: 300 m³/h
Electric backup power: 1500 W
Rated power input by heat pump: 320 W
Maximum power input by heat pump: 535 W
Maximum power input: 2035 W
Heating water capacity: 24 L/h
Heating up time (10→55°C) @7°C: 7.8 h
Default temperature setting: 65°C
Temperature setting range with heater: 35°C – 75°C
Maximum temperature heat pump only: 65°C
Refrigerant
Refrigerant type: R290
Refrigerant charge: 0.15 kg
Working temperature range: -7°C – 45°C
Noise
Noise power level: 50 dB(A)
Sound pressure @1m: 36 dB(A)
Dimensions and Connections
Product dimensions (mm):
600 × 620 × 1694
Packing dimensions (mm):
736 × 695 × 1940
Net weight: 86 kg
Gross weight: 109 kg
Filled weight: 281 kg
* THE COP and noise level data was tested in Haier lab
